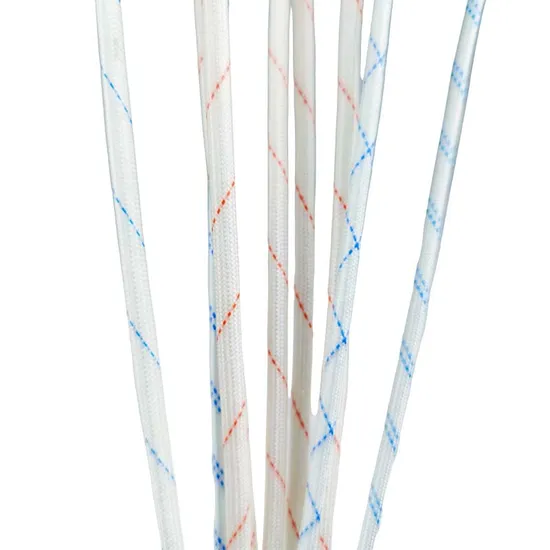

Electrical Insulation PVC Fiberglass Sleeve 1mm 2mm 3mm 5mm 2715 Insulation Sleeve Resin Coated Fiberglass Sleeving

• Overview
• Product Description
• Detailed Photos
• Technical Data
• Certifications
• Company Profile
• Packaging & Shipping
• FAQ

Overview

Basic Info.

Model NO.	JZ2715
Material	Fiberglass
Maximum Voltage	<10KV
Thermal Rating	A 105
Sample	Available
Advantage	Excellent Insulation Properties
Surface Color	White with Blue &White with Pink
Size	1-50mm
Type	Insulation Sleeve & Tube
Chemistry	Hybrid Insulation
Classification	Hybrid Insulation Materials
Certification	ISO9001
Brand	Jinzhi Insulation
Transport Package	Pallet / Carton
Specification	1-50mm
Origin	Xuchang, Henan
Production Capacity	12000 Metric Ton/Metric Tons Per Year

Packaging & Delivery

Package Size30.00cm * 20.00cm * 10.00cm Package Gross Weight1.200kg

Product Description

Name: 2753 silicone fiberglass sleeve 2740 acrylic fiberglass sleeve 2715 PVC fiberglass sleeve

Product Description

Electric Wire Protection 2715PVC Insulation Sleeves

Polyvinyl chloride(PVC) fiberglass pipe is made of alkali-free glass fiber braided pipe coated with polyvinyl chloride resin and heated and plasticized 2715 pvc sleeve has good dielectric properties and chemical resistance, as well as superior softness and elasticity. 2715 pvc sleeve is used for wiring insulation and mechanical protection of motors, electrical appliances, instruments, medical equipment, radios, televisions, electric fans, washing machines and other household appliance

1. Inner Diameter: 1-30mm
2.Breakdown voltage: 1.5,2.5,4,7kv
3.Packing : woven bags or carton
4.Competitve price
5.Cooperated with india, PK, Iran, Russia, South Korea and etc.
6.1000mm for one pcs or in roll according to customers' need

Characters It is Class A insulating material.This product has good qualities of dielectric,chemical resistance,excellent softness and elasticity.

Application

Suitable for wiring insulation and mechanical protection of motors, electrical appliances, instruments, radios, etc.

.

Q: How will you pack the product? A: We pack with paper cartons. Q: Do you accept OEM? A: Yes, we do. Q: Do you provide free sample? And how many days it will take? A: Yes, we provide free sample, only need you to pay the courier charge. We will make the sample within 3 workingdays and it will take 3-7days on the transportation. Q: What's your delivery time? A: We are factory, so we can efficiently control the production time, and then for the delivery time, it is 5-20 working days. Q: Which certification do you have? A: The plant has passed the certificate of lSO 9001 quality system certification; Q: What's your payment term? A: We accept T/T,L/C, Western Union, Paypal,Escrow,or customized if it is acceptable. Q: Which shipping method is there? A: Air,Sea, Land, Rail,Choose the most suitable shipping method according to the quantity of your goods.

Detailed Photos Technical Data

Inner diameter(mm)		wall thickness(mm)
Index value	Standard tolerance	Min	Max
0.5/0.8	±0.10	0.2	0.5
1/1.5	±0.15	0.2	0.75
2/2.5	±0.20	0.2	0.75
3	±0.25	0.2	0.75
4/5/6	0.25	0.3	0.75
7/8	±0.50	0.3	0.9
9/10/12/14/16/18/20/23/25/27	±0.50	0.4	0.9

Name		Unit	Value
Beakdown voltage	Median	KV	4
	Lowest value		2.5
Insulation resistance	At room temperature	MΩ	≥10^3
	After damp heat		≥10
Temperature		----	105
