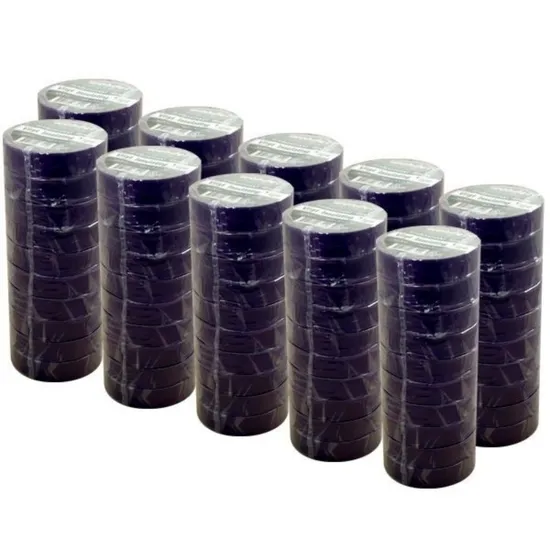

Original Taiwan Wonder PVC Waterproof Industrial Electrical Insulation Tape
- Overview
- Product Description
- Product Parameters
- Packaging & Shipping
- Company Profile
- FAQ
Basic Info.
| Material | PVC |
| Maximum Voltage | <10KV |
| Thermal Rating | Y 90 |
| Width | 10mm,19mm or as Your Needs |
| Product Name | PVC Insulation Electrical Tape |
| Thickness | 110-400mic |
| Length | 5m-50m Per Roll/Customized |
| MOQ | 1000 Rolls |
| Adhesion ASTM(Kg/25cm) | 0.45/0.35 |
| Tensile Strength ASTM(Kg/2.5cm) | 16-28n/Cm |
| Voltage Breakdown | Over6.5kv |
| Elongation at Break | 150% ~ 220% |
| Peel Strength | 1.6n/10mm |
| Transport Package | 1 Rolls/Shrink Wrap, 10 Rolls/Shrink Wrap 200rolls |
| Specification | 160mic*19mm*9m or Custom size |
| Trademark | MT |
| Origin | Shenzhen, China |
Product Description
Our PVC electrical insulation tape is meticulously engineered using a robust polyvinyl chloride film as its base material, topped with a highly effective rubber pressure-sensitive adhesive. This tape is ideal for diverse applications, such as wire and cable insulation winding, and offers exceptional mechanical protection, along with resistance against acids, alkalis, and harsh weather conditions. Specifications:Width options include: 10mm, 19mm, or customized to meet your specific needs.Length: Conveniently measured at 10 yards to suit various projects.Thickness: Ranges from 0.11mm to 0.19mm, providing flexibility and strength.Color: Available in a variety of shades including Black, Grey, Red, Yellow, White, Green, Blue, Light Blue, and more, to complement any project.Thickness: Options available from 0.1mm to 0.2mm, ensuring adaptability for different uses.Peeling Strength: Offers a solid hold with greater than or equal to 3.5(N/in).Tensile Strength: An impressive range from 16 to 28N/cm, providing excellent durability.Percentage Elongation: Exhibits a stretch capacity of ≥ 150%, accommodating various tasks.Voltage Breakdown: Withstands up to or exceeding 6.5KV, assuring safety under electrical stress.PVC Insulation Tape Packing:Packaging options include: 1 roll/shrink wrap, 10 rolls/shrink wrap, or 200 rolls/carton to meet diverse needs.Custom packing available to align with specific client requirements.
Product Description
Product Parameters
| Product Code | Total Thickness | Colour | Adhesion ASTM(kg/25cm) | Tensile Strength ASTM(kg/2.5cm) | Elongation(%) | Application |
| EU1803MF | 0.18 | Black | 0.45 | 8.4 | 100↑ | Electrically insulated joints and splices in wires and cables Ul listed and CSA approved |
| E1803GN | 0.18 | Glossy | 0.35 | 4.7 | 150↑ | Electrically insulated joints and splices in wires and cables |
| E1503GN | 0.15 | Glossy | 0.35 | 4.7 | 150↑ | |
| E1303GN | 0.13 | Glossy | 0.35 | 4.7 | 150↑ | |
| E1301GN | 0.125 | Glossy | 0.35 | 4.7 | 150↑ | |
| E1101GN | 0.115 | Glossy | 0.35 | 4.7 | 150↑ | |
| E1803MN | 0.18 | Matt | 0.35 | 4.7 | 150↑ | |
| E1503MN | 0.15 | Matt | 0.35 | 4.7 | 150↑ | |
| E1301MN | 0.125 | Matt | 0.35 | 4.7 | 150↑ | |
| E1102MN | 0.115 | Matt | 0.35 | 4.7 | 150↑ | |
| E1801GF | 0.18 | Glossy | 0.35 | 4.7 | 150↑ | Flame retardant type Electrically insulated joints and splices in wires and cables |
| E1803GF | 0.18 | Glossy | 0.35 | 4.7 | 150↑ | |
| E1501GF | 0.15 | Glossy | 0.35 | 4.7 | 150↑ | |
| E1301GF | 0.125 | Glossy | 0.35 | 4.7 | 150↑ | |
| E1203GF | 0.125 | Glossy | 0.35 | 4.7 | 150↑ | |
| E1101GF | 0.115 | Glossy | 0.35 | 4.7 | 150↑ | |
| E1802MF | 0.18 | Matt | 0.35 | 4.7 | 150↑ | |
| E1502MF | 0.15 | Matt | 0.35 | 4.7 | 150↑ | |
| E1302MF | 0.125 | Matt | 0.35 | 4.7 | 150↑ | |
| E1102MF | 0.115 | Matt | 0.35 | 4.7 | 125↑ |
Packaging & Shipping
Pricing Tiers: 50,000 - 79,999 pieces at $0.128, 100,000 - 999,999 pieces at $0.07, and for orders ≥ 100,000 pieces, only $0.05 each. Note: Shipping solutions for the desired quantities are currently being optimized.
Company Profile
Shenzhen Mimoo Technology Co., Ltd., a distinguished leader in tape manufacturing, boasts cutting-edge production capabilities with automated lines ensuring unmatched product stability, speedy production rates, and impeccable precision. With a monthly output capacity of 100,000 square feet of butyl waterproof tape across diverse thickness and breadth dimensions, our products are highly sought after across global markets including China, Europe, America, Asia, and Oceania. As we advance, MT tape is committed to further investing in the Waterproof & Sealant New Materials industry, backed by a premier service team and ever-evolving innovative solutions, firmly positioning us as pioneers shaping the future of the industry.
FAQ
Q: Can you produce customized products?
A: Yes, we can produce the products as your requested material size, printing, etc, please feel free to contact us if you have any requests. Q: Do you offer samples? A: Normally free samples similar to your request can be provided for your reference, you only need to pay for the freight. Q: Can we place an order with a lower quantity than MOQ? A: Price is highly based on quantity, if the quantity is lower than MOQ, the unit price will be higher. Q: What is your production time? A: For samples, we can send them within 1 day. For bulk orders, normally we can finish them in about 2 weeks. Shipping time depends on different areas. Q: What shipping way do you usually use? A: For samples, we send them by DHL, UPS, FedEx, or some other cheap and fast express. For mass production, we usually deliver them by sea in consideration of the shipping cost. But if the cargo is urgent, we can help to deliver by air.
Q: What kinds of payment can you offer?
A: T/T 30% in advance, 70%balance before delivery, Western Union, L/C, etc, If you want to deal with EXW/CIF/CNF term instead of FOB, please specify.
